Heavy Duty Large Conductor Gripper with OEM Customization under ISO 9001
Product Overview

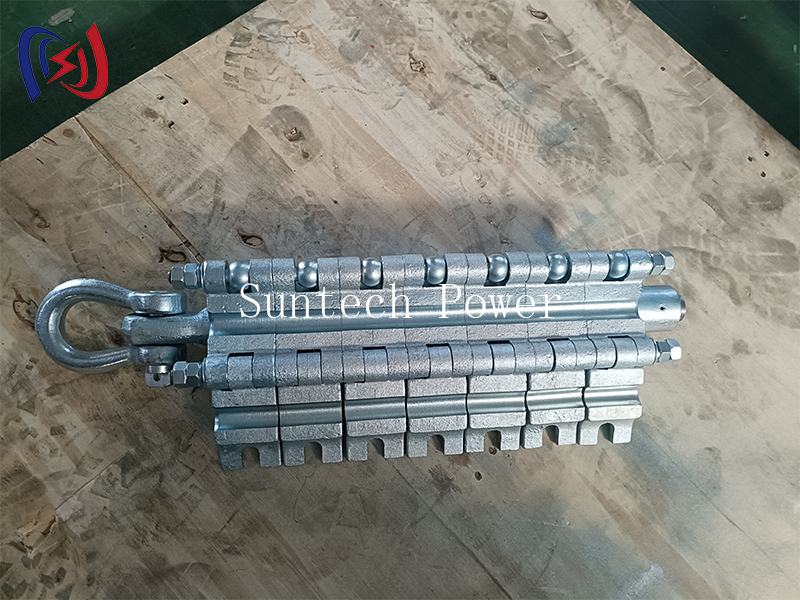

Pull a thick ACSR conductor with a single-point clamp and the wire can skid or get its surface scored; at high tension the consequences are worse. The SKDP2 come-along avoids this by wrapping the conductor with 9, 11, 13 or 15 segments, spreading the pull around the full circumference so pressure never concentrates in one spot. SK35DP2 and SK50DP2 are rated 120KN and 150KN respectively for conductors up to Φ35mm and Φ50mm, with a 150N.m tightening torque; buyers specify the conductor diameter at ordering so the segment set matches the wire exactly. Manufactured under ISO 9001:2008, the range also supports OEM production for project-specific needs.
Technical Specifications
|
Item No.
|
Model
|
Rated Load (KN)
|
Applicable Conductor Dia. (mm)
|
Tightening Torque (N.m)
|
Weight (kg)
|
|
13230L
|
SK35DP2
|
120
|
Φ35 (MAX)
|
150
|
20
|
|
13231L
|
SK50DP2
|
150
|
Φ50 (MAX)
|
150
|
26
|
Applications
· Stringing large cross-section conductors under high tension
· Building long span transmission lines
· Tensioning conductors and adjusting sag
· Heavy duty overhead line stringing operations
Product Advantages
· Circumferential Even Grip — 9, 11, 13 or 15 segments distribute clamping force evenly over 25-50mm conductors, preventing skid and surface damage.
· 120-150KN Pull Capacity — SK35DP2 delivers 120KN and SK50DP2 delivers 150KN, sized for high tension and long span conditions.
· Torque Rated Clamping — The 150N.m tightening torque holds the conductor firmly; specifying the wire diameter at order time gives an exact segment fit.
· ISO 9001:2008 Production — Manufactured under an ISO 9001:2008 quality system, with OEM customization available for project specific requirements.
